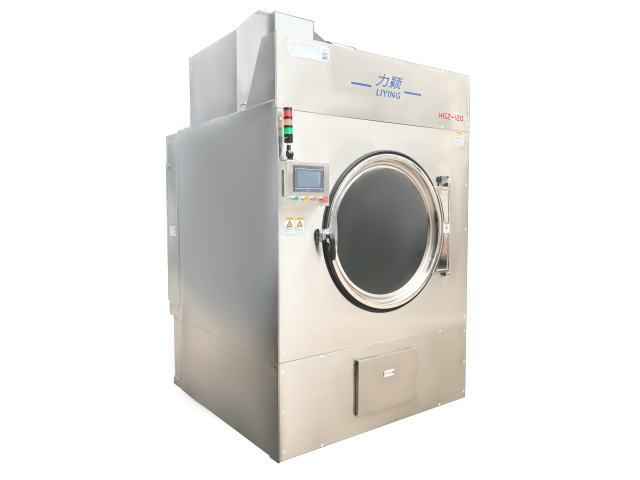

Energy Efficient Dryer Series

No.HG-30 & HG-50 & HGZ-120 & HGZ-150

Traditional dryers in China generally face the following four major problems:

  1. Inadequate utilization of thermal energy leads to high energy consumption.
  2. There is a significant mismatch between thermal energy usage and actual utilization, resulting in a substantial amount of ineffective thermal energy consumption. During operation, they cannot be turned on and used instantly or precisely controlled, causing thermal energy loss and significant waste.
  3. The thermal energy is not concentrated, leading to long heating times and slow heating speeds. This process increases the consumption of both thermal and electrical energy.
  4. Plush cleaning difficulties, which impedes the circulation of thermal energy and thus raises costs.

Against this backdrop of national energy conservation and consumption reduction, Liying has developed and produced a series of energy-saving dryers based on these issues. These dryers feature a patented air duct circulation system, consuming 40% less energy and drying 30% faster than traditional dryers. They help enterprises reduce energy consumption and save costs.

  • Description

  • HGZ-30/50/120/150

Model DRUM VOLUME(KG) DRUM DIAMETER(mm) DRUM DEPTH(mm) INSTALLED POWER (KW) Length × Width × Height (mm)
HG-30 30 970 640 0.75 1060*1270*1860
HG-50 50 1000 950 1.1 1345*1620*2550
HGZ-120 120 1480  1200 8.2 1713*2042*2885
HGZ-150 150 1600 1215 9 1853 * 2226 * 3060
Rapid size reduction and fast air exhaust

Rapid size reduction and fast air exhaust

15-30 minutes faster than similar dryers
Low-temperature drying capability

Low-temperature drying capability

It features a low-temperature drying function and a unique hot air control system. The inlet air temperature can be adjusted according to fabric requirements. While conventional dryers typically have an inlet air temperature of around 120-130 °C , LiYingequipment can control the inlet air temperature below 100 °C .
The unique thermal insulation and sealing techniques

The unique thermal insulation and sealing techniques

Minimize heat energy waste.
Unique Three-Layer Lint Filter

Unique Three-Layer Lint Filter

Three-layer filtration structureenhances the dryer's energy-saving lifespan while significantlyreducing lint cleaning difficulty and maintenance costs.
Unique Hot Air Inlet Structure

Unique Hot Air Inlet Structure

A 160-degree inlet air designensures all-around heating of garments, reducing the impact ofdryness and humidity variations.
Unique PLC Control System

Unique PLC Control System

(1) Intelligently controls steam flow, radiator temperature, and lowerfan speed via PLC.(2) Rapid dehumidification and quick temperature rise, doubling thespeed while saving steam.(3) Enables setting of low-temperature drying programs forhigh-end fabrics and rapid high-temperature shrinkage programsfor ordinary fabrics.
Optional Humidity Control System

Optional Humidity Control System

(1) Sets humidity levels based on garment dryness and sizerequirements.(2) Automatically stops heating when garments reach the presetdrying humidity, reducing losses.
Anti-Snag Drum Design

Anti-Snag Drum Design

(1) Features a triple-stamped, inverted-edge design usinghigh-quality stainless steel.(2) Effectively prevents snagging of synthetic fiber products such ascashmere, socks, and seamless underwear during the dryingprocess.
Specially Designed Airflow Guide Struct & Premium Component Selectionure

Specially Designed Airflow Guide Struct & Premium Component Selectionure

Selects electrical components, bearings, and other parts from top-tier domestic brands.
