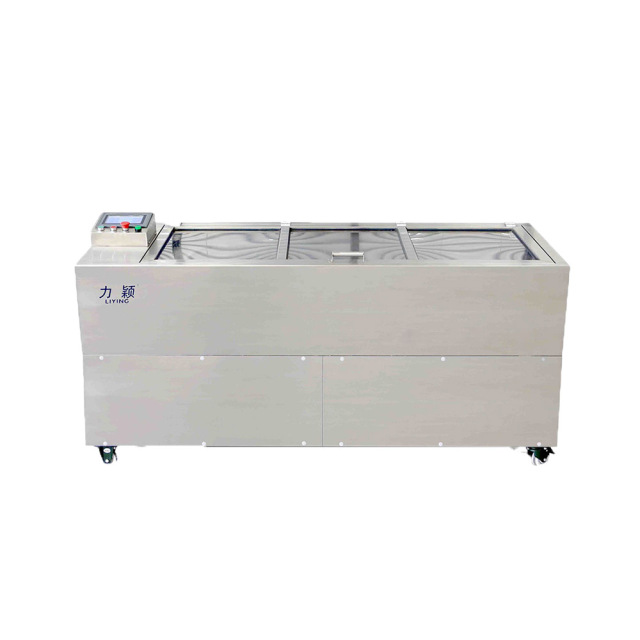

Automatic Needlebed Washing Machine

No.L=2000,L=2180,L=2400,L=2600

The third-generation LiYing Automatic needlebed washing machine solves the problem encountered by computerized flat knitting machines after prolonged operation. This dirt, formed by a mixture of fluff, dust, and oil stains, predominantly accumulates on the needle plate. During machine operation, such dirt buildup leads to problems like dropped stitches, stuck stitches, and needle collisions, which adversely affect the machine's operational efficiency. It also increases the wear and tear on components such as knitting needles, thereby raising costs and reducing production efficiency.

This machine has completely resolved the long-standing challenges in the industry regarding inadequate cleaning and low efficiency in cleaning the needle plates of computerized flat knitting machines. It has made the cleaning of needle plates in computerized flat knitting machines more intelligent, efficient, and convenient. The machine boasts a range of features, including energy conservation and environmental protection, intelligent and high efficiency, thorough cleaning, needle-pushing functionality, broad applicability, one-touch cleaning, low operating costs, rust removal and prevention, automatic shutdown protection in case of water shortage, and a lightweight design.

  • Description

  • L2000/2180/2400/2600

Model Liquid storage tank capacity Maximum displacement velocity Maximum stroke of longitudinal axis) INSTALLED POWER (KW) Length × Width × Height (mm)
L=2000 Maximum 100L 80mm/s 400mm >6.5kw 2000*730*1070
L=2180 Maximum 100L 80mm/s 450mm >6.5kw 2180*730*1080
L=2400 Maximum 120L 80mm/s 400mm >6.5kw 2400*860*1100
L=2600 Maximum 100L 80mm/s 400mm >6.5kw 2600*730*1100
Energy Conservation & Emission Reduction

Energy Conservation & Emission Reduction

Ultra-Low Liquor Ratio Dyeing, achieves a liquor ratio range of 1:2 to 1:8, reduces water consumption by 50%, cuts steam usage by 50%, and saves labor costs by over 60%.
Low-Speed Spin Function

Low-Speed Spin Function

Adjustable speed up to 100 RPM. The floor is kept free of standing water, ensuring a clean and orderly workspace.
Intelligent Dyeing Program

Intelligent Dyeing Program

Intelligent PLC touchscreen control for dyeing processes, enabling precise water, steam, and chemical dosing. Reduces manual intervention and batch-to-batch variations. Flexible editing of dyeing process timings and parameters for each step, with multi-formula memory storage. Automatic water volume calculation per step based on batch size and liquor ratio. Achieves standardized automated dyeing processes, mechatronic integration management, ensuring consistent product quality, reducing defect rates, and improving efficiency.
Unique Design

Unique Design

Compact and ingenious structural design featuring  specially sized beaters to ensure thorough dye liquor penetration and uniform dyeing. Unique SS316L stainless steel muffler prevents localized thermal shock during chemical/temperature adjustments, avoiding uneven dyeing on sensitive fabrics. , prevents tangling/wrinkling. Features an illuminated glass viewing port for sample comparison.
High Degree of Automation

High Degree of Automation

Curve-based chemical dosing control, proportional heating/cooling control, horizontal circulation system, indirect/direct heating options, filtration unit, and real-time PH monitoring module.
Automatic Chemical Feeding Tanks

Automatic Chemical Feeding Tanks

Dual-tank dual-chemical feeding design with selectable modes for different dyes (optional multi-tank multi-chemical configurations).
High-Temperature 99℃

High-Temperature 99℃

Machine interior temperature reaches 99℃ with enclosed insulation to minimize heat loss and enhance energy efficiency.
 Flow-Based Water Inlet

Flow-Based Water Inlet

Flow meter-controlled water inlet enables precise water volume settings for different processes.
Automatic Tilting Unloading:

Automatic Tilting Unloading:

Automatically unloads garments, reducing labor intensity and eliminating the need for manual unloading from the drum.
Broad Application Scope

Broad Application Scope

Suitable for garment dyeing (reactive/pigment/sulfur dyeing) and softening finishing of cotton knit hoodies, woven casual pants, jeans, knit wool sweaters, socks, hats, and seamless underwear.
 Premium Component Selection

Premium Component Selection

International first-tier brand electrical components and bearings.
Central Control System Interface

Central Control System Interface

Reserved interface for central control via office computer, enabling networked management.
